G2130 G2150卸扣

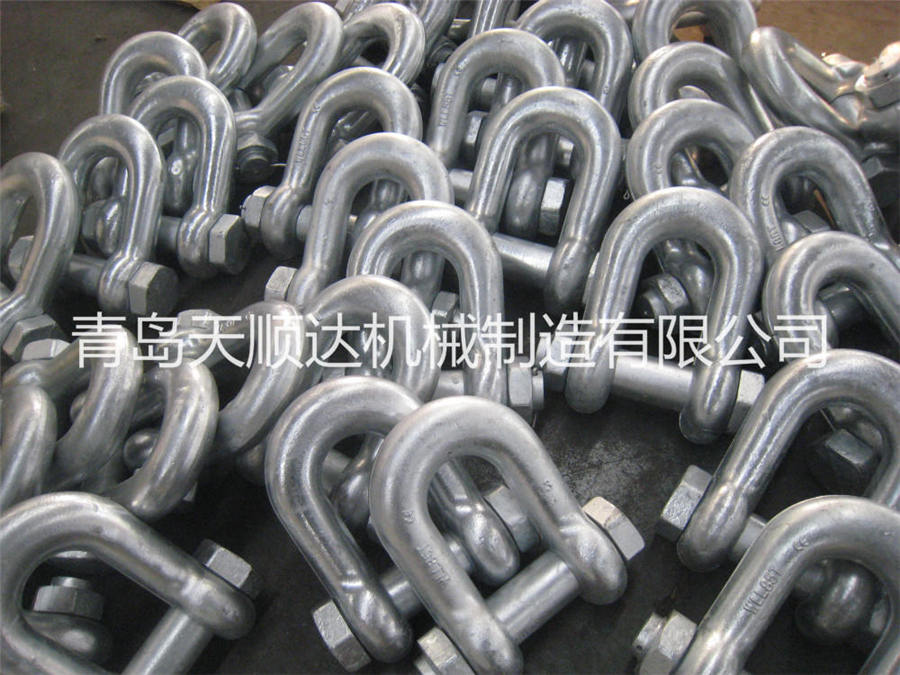

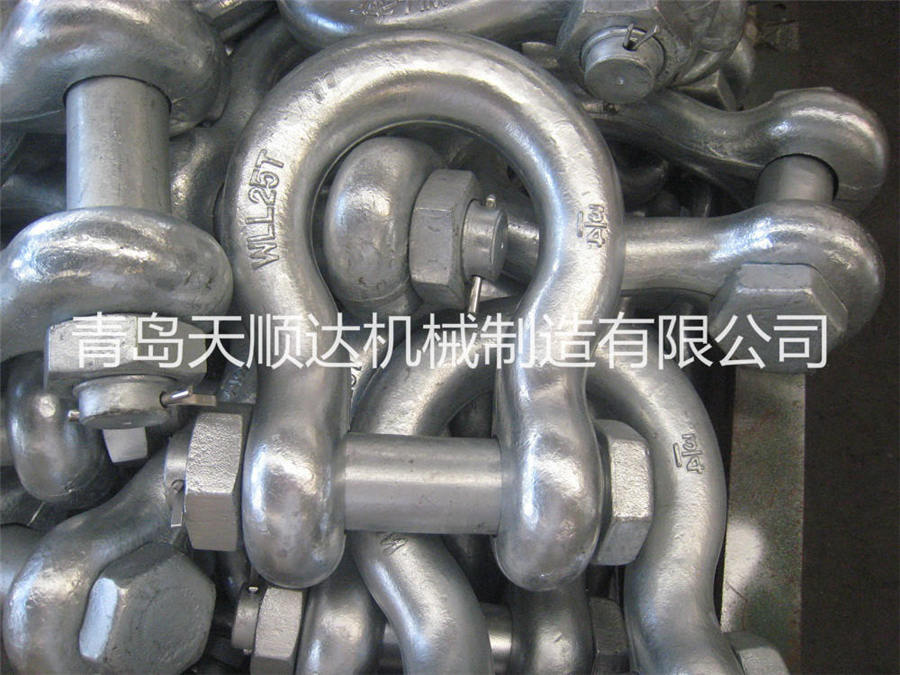

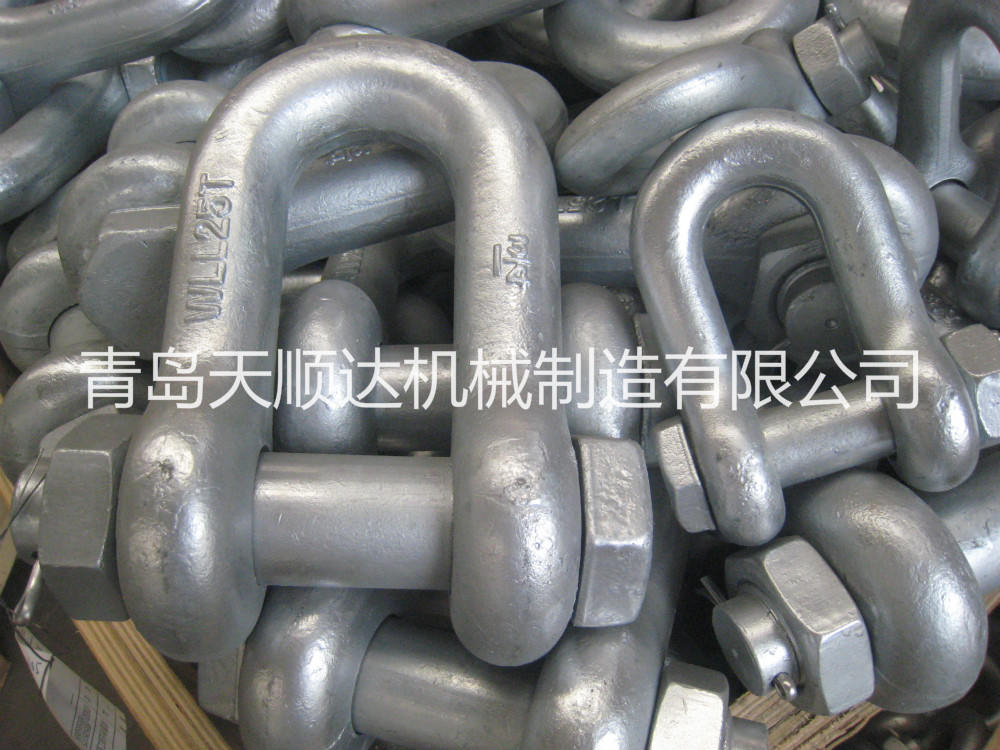

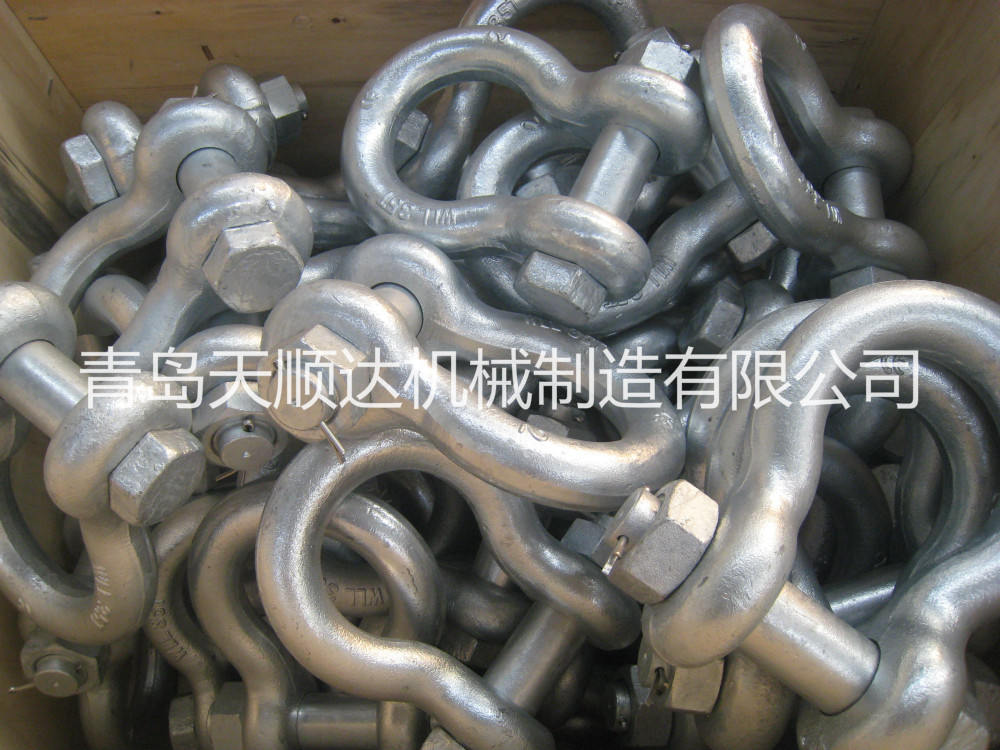

美式模鍛卸扣--G2130  G2150

材料: 45#  40Cr

表面處理:  熱鍍鋅  電鍍鋅

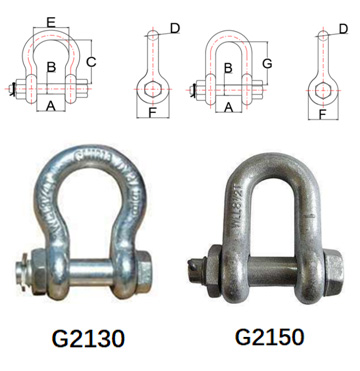

規(guī)格Inch	工作拉力T	外形尺寸 mm							圖示
		A	B	C	D	E	F	G
3/8	1	16.8	11.2	36.6	9.65	26.2	23.1	31
7/16	1-1/2	19	12.7	42.9	11.2	29.5	26.9	36
1/2	2	20.6	16	47.8	12.7	33.3	30.2	41
5/8	3-1/4	26.9	19.1	60.5	16	42.9	38.1	51
3/4	4-3/4	31.8	22.4	71.5	19.1	51	46	60
7/8	6-1/2	36.6	25.4	84	22.4	58	53	71
1	8-1/2	42.9	28.7	95.5	25.4	68.5	60.5	81
1-1/8	9-1/2	46	31.8	108	28.7	74	68.5	91
1-1/4	12	51.5	35.1	119	31.8	82.5	76	100
1-3/8	13-1/2	57	38.1	133	35.1	92	84	111
1-1/2	17	60.5	41.4	146	38.1	98.5	92	124
1-3/4	25	73	51	178	44.5	127	106	146
2	35	82.5	57	197	51	146	122	171
2-1/2	55	104	70	267	66.5	184	145	203
3	85	127	82.5	330	76	200	165	216
3-1/2	120	133	95.5	372	92	229	203	262
4	150	140	108	368	104	254	229	260
