| 材料: U2 :CM490 U3 :CM690 |
| 表面處理: 黑漆,原色 |

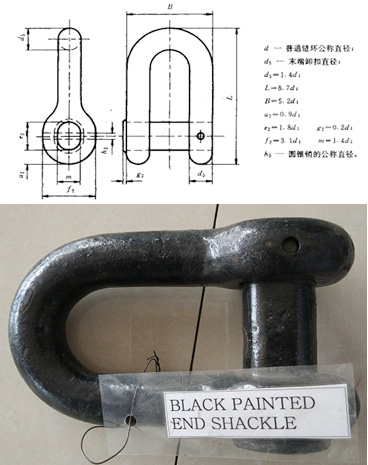

| 規(guī)格mm | 單重(KG) | 規(guī)格mm | 單重(KG) | 規(guī)格圖示 | |
| φ12.5 | 1.0 | φ60 | 77.0 |  | |
| φ14 | 1.3 | φ62 | 85.2 | ||
| φ16 | 1.5 | φ64 | 97.0 | ||
| φ17.5 | 2.0 | φ66 | 115.0 | ||
| φ19 | 2.6 | φ68 | 116.3 | ||
| φ20.5 | 3.2 | φ70 | 124.6 | ||
| φ22 | 4.0 | φ73 | 145.0 | ||
| φ24 | 5.2 | φ76 | 160.0 | ||
| φ26 | 6.8 | φ78 | 170.0 | ||
| φ28 | 8.4 | φ81 | 195.0 | ||
| φ30 | 10.0 | φ84 | 215.0 | ||
| φ32 | 11.7 | φ87 | 240.0 | ||
| φ34 | 14.3 | φ90 | 260.0 | ||
| φ36 | 17.0 | φ92 | 280.0 | ||
| φ38 | 19.9 | φ95 | 310.0 | ||
| φ40 | 23.0 | φ97 | 340.0 | ||
| φ42 | 27.0 | φ100 | 365.0 | ||
| φ44 | 31.5 | φ102 | 395.0 | ||
| φ46 | 34.7 | φ105 | 425.0 | ||
| φ48 | 41.1 | φ107 | 450.0 | ||
| φ50 | 45.2 | φ111 | 500.0 | ||
| φ52 | 50.9 | φ114 | 545.0 | ||
| φ54 | 57.4 | φ117 | 580.0 | ||
| φ56 | 64.0 | φ120 | 630.0 | ||
| φ58 | 70.8 | φ122 | 670.0 |
